Description
ART continues to update the Metaltek XB1200 CNC beam coping machine, making it even more productive and versatile.
Traditionally, beam coping has been done manually by marking the dimensions for coping on the workpiece as per the drawings and then manually cutting out the cope from the steel beam using oxy-fuel gas torch. This method leaves a rough cut requiring considerable chipping & grinding to improve the finish.
Coping machines provide high speed and quality, eliminating all the drawbacks of manual coping. While there are many different machines from well-known overseas manufacturers on the market, Brisbane-based Advanced Robotic Technology (ART) has studied the needs of every steel fabrication shop in Australia, from small to large, in order to develop an automated, versatile machine, giving steel fabricators around the country a competitive edge; not only by creating an efficient automated machine made by ART in Brisbane, but also by offering local service and support.
“We developed the Metaltek XB series to answer the need for fully-automated structural steel processing in one machine,” company Director David White explains. “To eliminate as much manual labour as possible we included full material handling and all functions are automated and simple to operate. The whole machine is designed to reduce labour and double handling while increasing productivity and profits.”

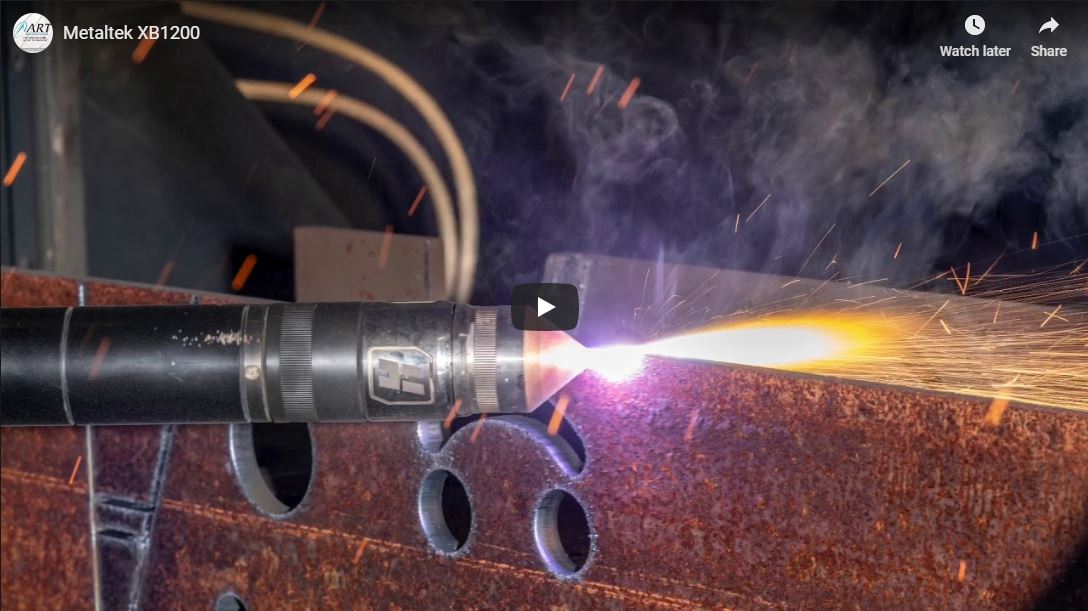

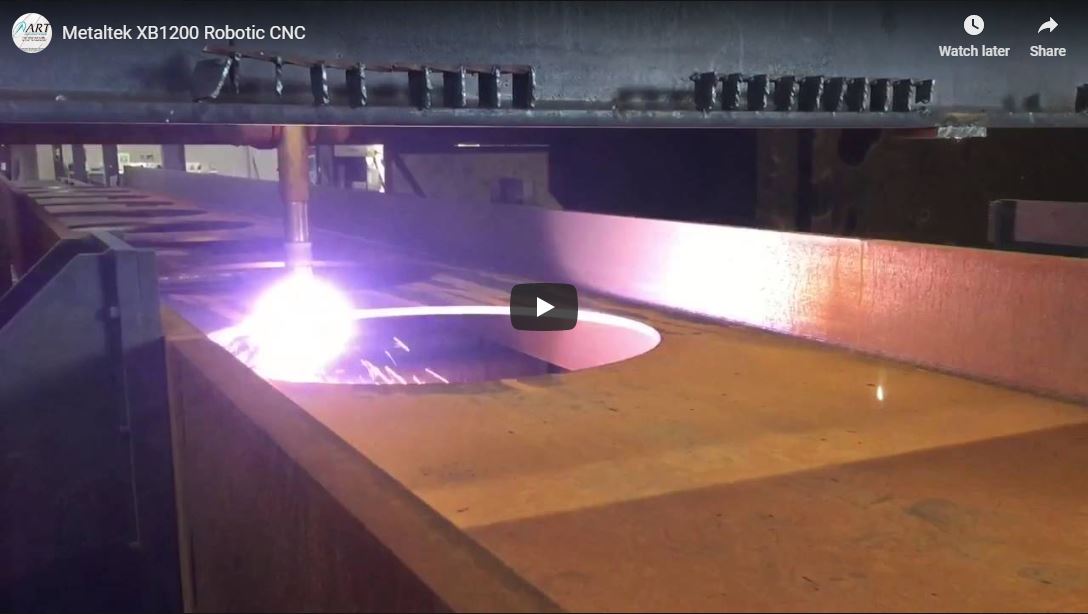

With a footprint of 3750 x 3600 mm, Metaltek XB offers full 4-sided plasma processing for the steel fabrication industry, advanced CNC robotics, high-definition plasma cutting and in-house developed user-friendly software and control interface. Moreover, 3-axis material handling conveyor systems and cross-transfer conveyors for load and unloading eliminates a large percentage of lifting, flipping and moving of steel members between machines. The operator simply prepares the next length of steel for loading while the previous one is cutting. A tick box on the touchscreen lets the controller know that the next length is ready to load.
The drawbridge is able to extend 2.5 metres into the cutting envelope to support the material, clamp and draw for hitch feeding, and roll out the finished part. The drawbridge feed and synchronised rollers are both servo controlled to ensure highly-precise material feeding. The CNC controller can also automatically feed the next piece of material from the cross-feeds onto the in-feed roller conveyor for automatic cutting.

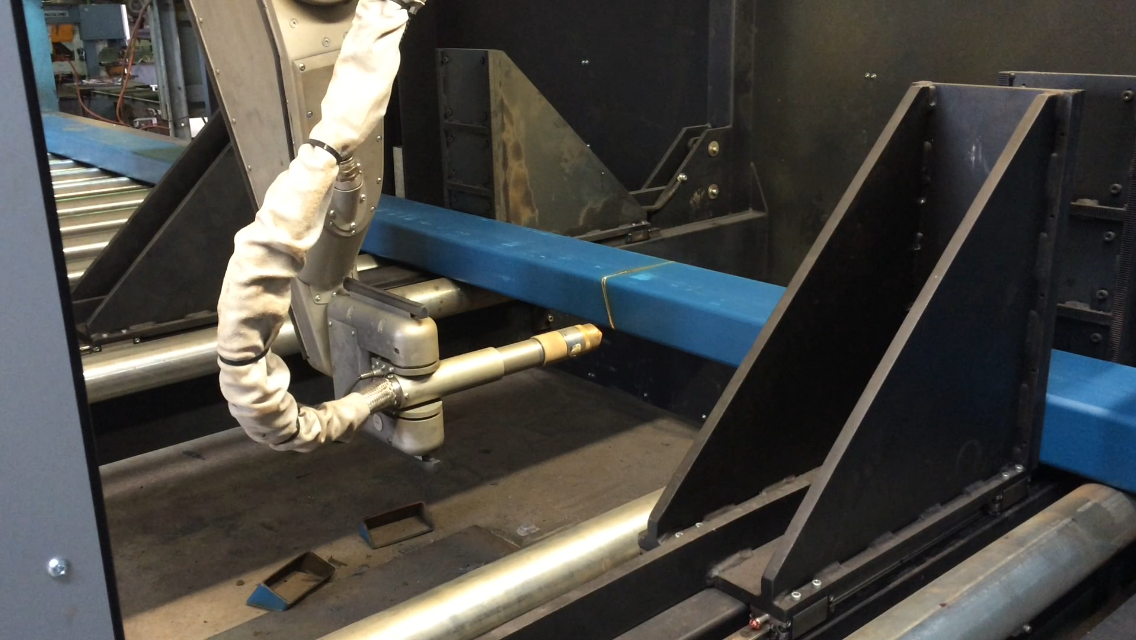

Inside the cell work area, the machine automatically senses material dimensions, and an extra-articulated robotic arm performs the desired cuts, even underneath the beam. In conjunction with the gantry system, the arm achieves unparalleled reach.
More information www.metaltekcnc.com
Metaltek XB1200.
SO COOL THAT IT GETS IT’S OWN WEBSITE!

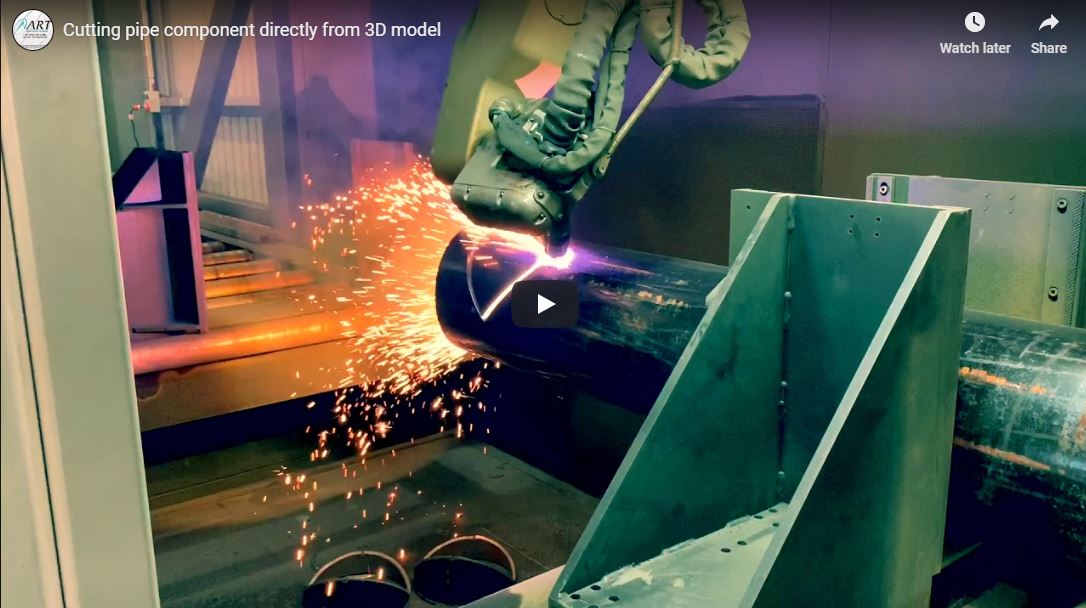

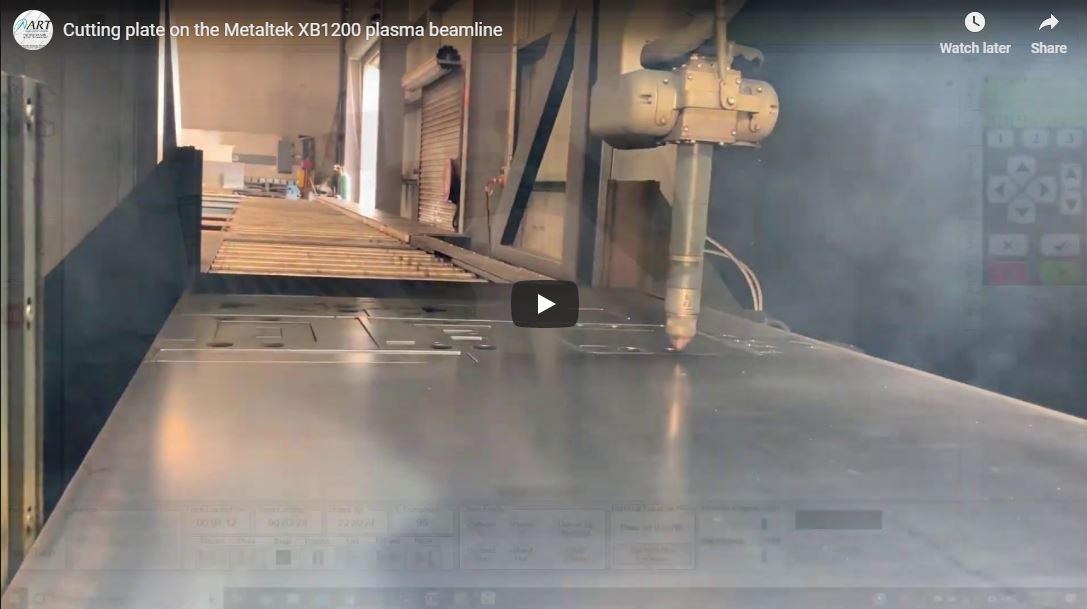

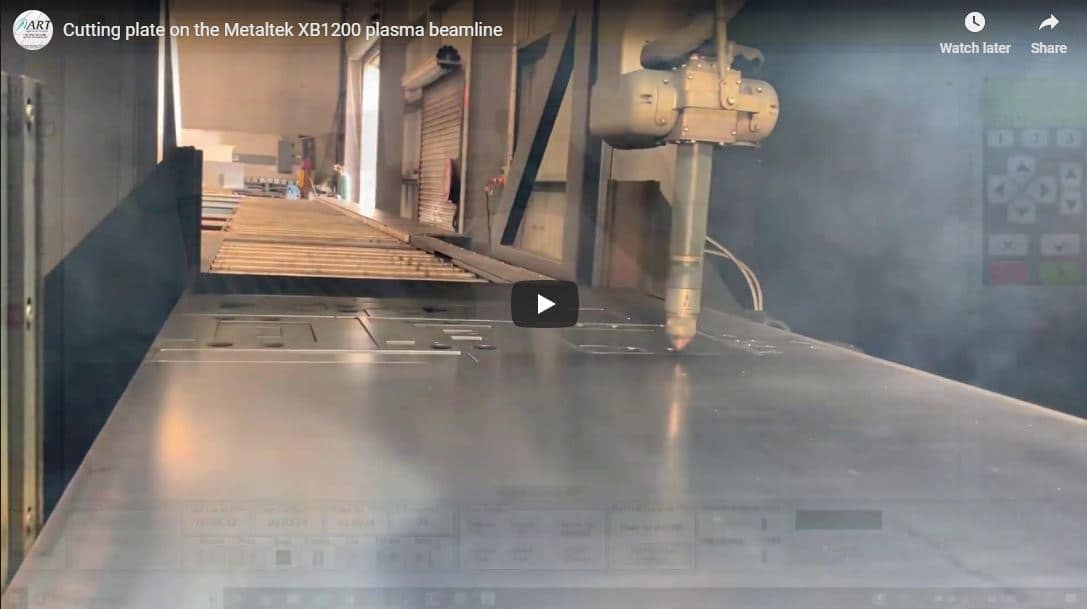

The Metaltek XB1200 is a global product that can process almost every type of steel profile including beams, channels, rectangular tube, angle, pipe and plate! Go to the dedicated website to find out more.
