XR Plasma.

Fast Efficient Standard Definition Cutting

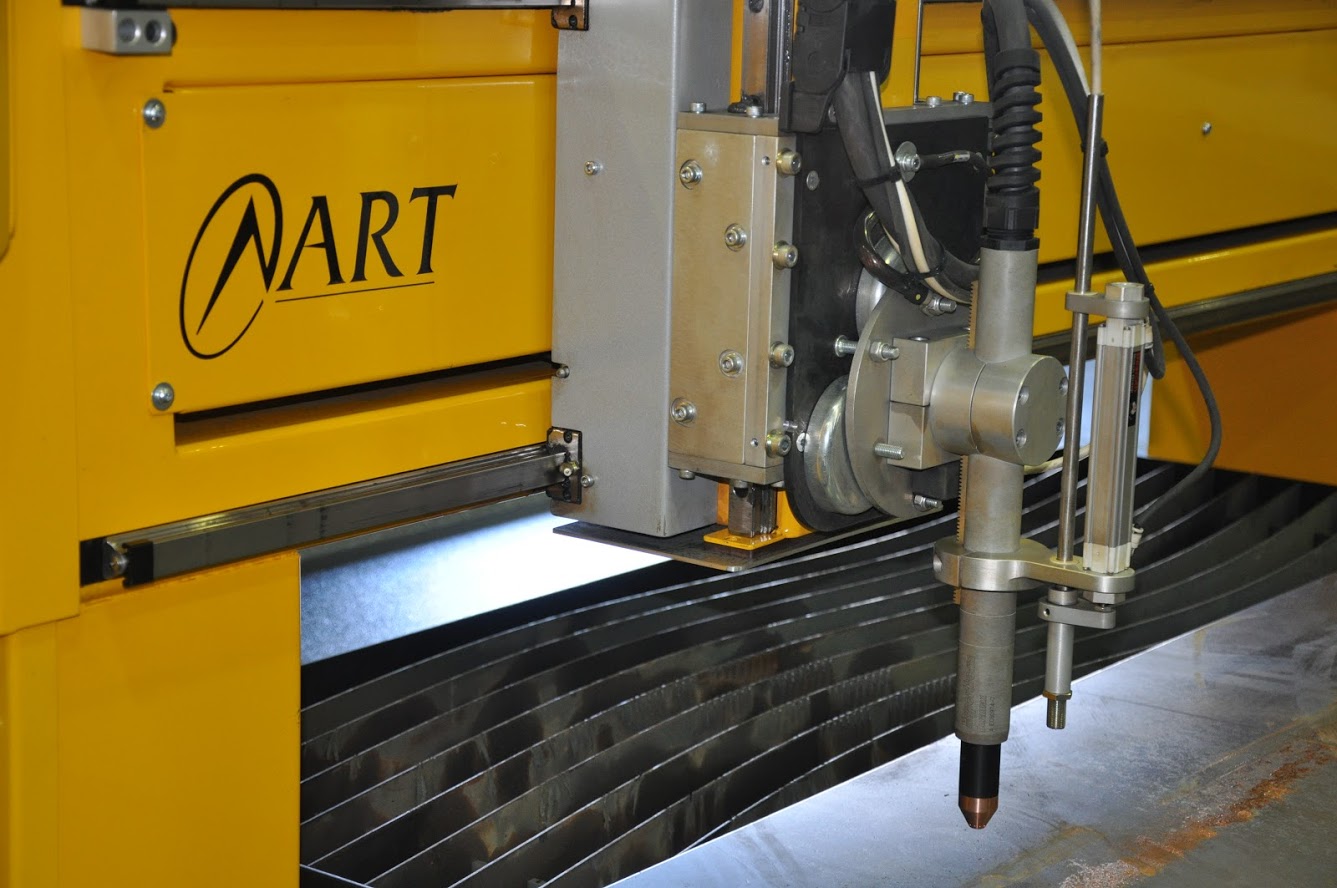

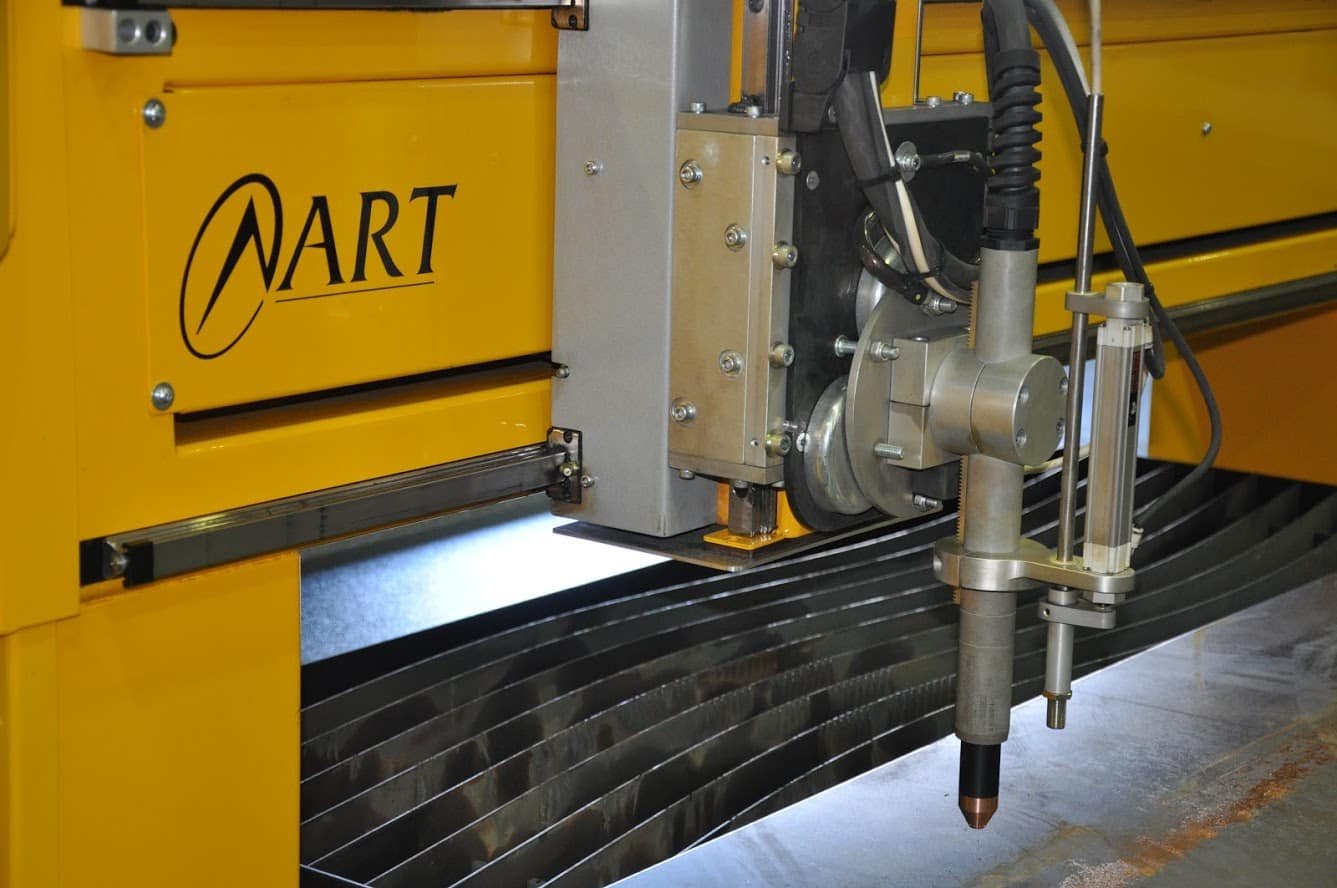

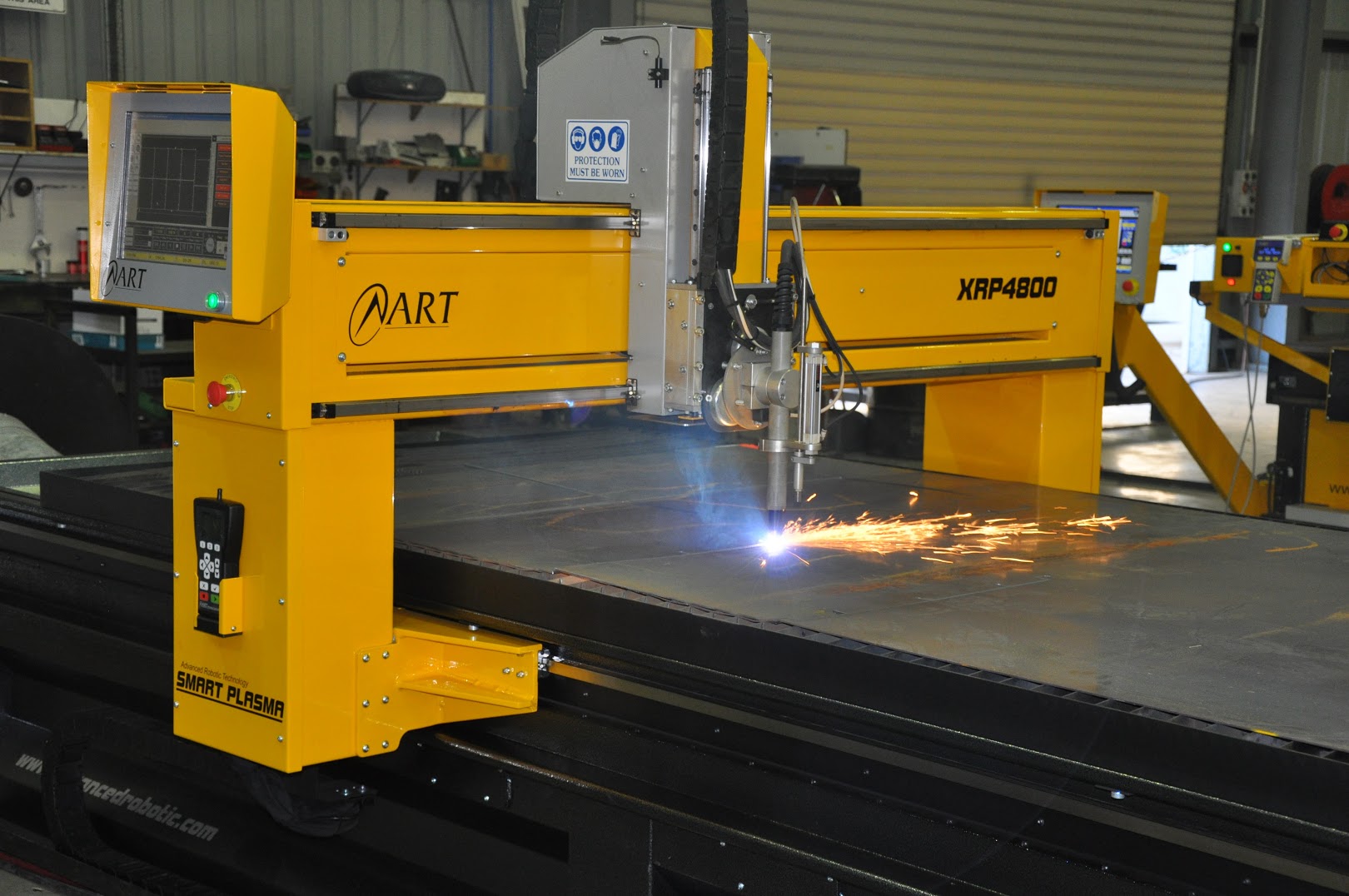

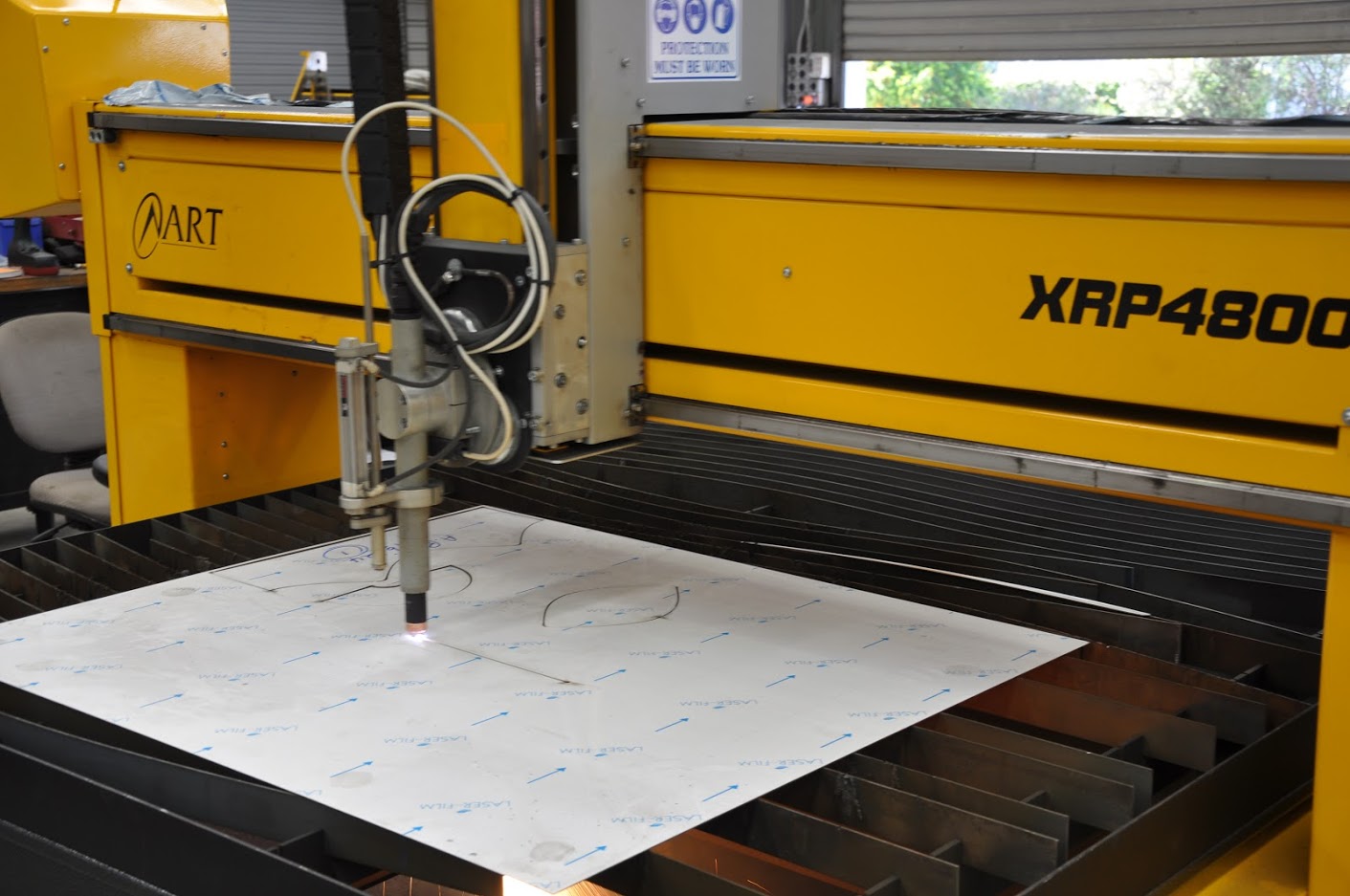

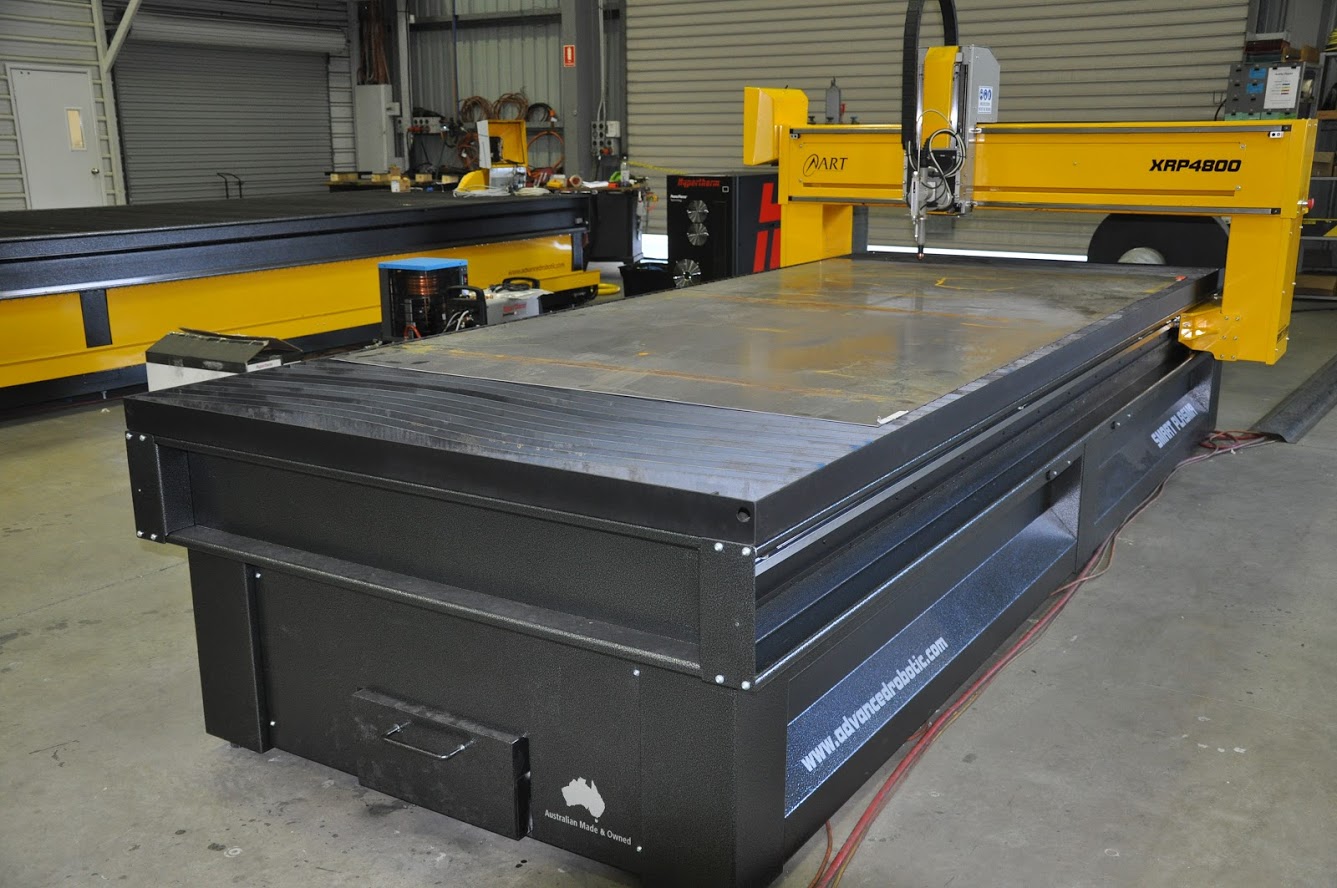

The XR Plasma is a heavy duty machine using Hypertherm Powermax air plasma systems. It boasts a large cut area to footprint ratio that makes it ideal for areas with limited floor space. The XR Plasma inherits all of the functionality, durability and superior motion performace from ART's high end machines.

Download brochure Watch Video

More Information

Specifications.

Work Area
Multiple options available. Common sizes are 4000mm x 1500mm, 4000mm x 1800mm, 6000mm x 2400mm, 10000mmm x 2400mm
Maximum cutting thickness
Varies with plasma unit. Up to 25mm Pierce and 40mm edge start with Powermax 125
Rapid Positioning speed
45000mm/min with optional safety scanners, 24000mm/min without safety scanners
Maximum cutting speed
As per rapid speeds
Clean-out method
Standard manual chute. Optional automated conveyors remove dross and deposit it in bins.
Fallen parts retrieval
As per clean-out method
Positioning Accuracy
0.05mm per 1000mm
Repeatability
0.01mm
Positioning system
AC servomotors with incremental encoders
Drive mechanism
Helical rack and pinion on X & Y, Ball screw on Z
Gearboxes
Helical planetary reducers - Japanese made
Guidance system
Precision 4 row square linear rail - German made
Cutting deck
Slats vary depending on plasma source. Options are 50mm x 3mm, 75mm x 3mm, 100mm x 5mm
Fume extraction
Dry extraction via ducting under deck
Fume Filtration
Camfil reverse pulse extraction and filtration system
Installation method
Mono steel construction - Drop on floor and connect services

More Information

Features.

Alignment Laser pointer

The precise laser dot makes setting up the job simple. It allows the operator to set the origin of the job and align to rotated material.

Read more

Built-in WiFi networking

The controller easily connects into your existing WiFi network for downloading job files. Also supports remote access and diagnostics for the ART service team.

Read more

Digitising

Use the laser pointer to plot lines and arcs precisely from templates with easy-to-use drawing tools.

Read more

Heavy duty fabrication

Fully welded steel chassis construction using 250mm deep PFC & UB profiles. Close cross beam spacing gives unparalleled stability. Steel is machined for precision linear components.

Read more

Heavy duty AC servo drives

Coupled with precision planetary gearboxes provide fast positioning. Hardened and ground helical rack and pinion provides smooth motion with excellent edge finish on machining.

Read more

Integrated Safety Circuit

Category 4 safety controller interfaces with all safety sensors and switches. Monitors all devices and cuts power to drives and spindle through monitored safety contactors.

Read more

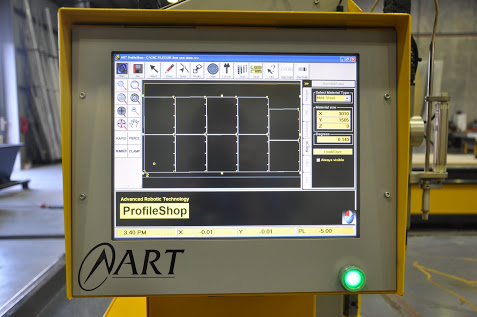

ProfileShop V3 Controller

ProfileShop graphical controller interface makes operation very fast to learn, while enabling a vast array of powerful features that make it one of the most efficient machines to use.

Read more

Under-deck extraction ducting

Controller automatically moves extraction point to follow cutting torch. Improves extraction performance dramatically.

Read more

Wireless pendant controller

Allows the operator to get close to the action for optimal view during manual operations, or even stop the machine remotely from anywhere in the factory. Works in conjunction with touchscreen.

Read more

Air Booster & Regulator

Low or variable air pressure affects cut quality and shortens consumable life. ART's Booster & Regulator System provides consistent air pressure over and above the shop air supply.

Read more

ART iCam Vision System

Integrated into the ART controller. No extra third party computer system required. Camera automatically locates registration points and the aligns cut paths to suit distorted prints. Also traces patterns or existing parts.

Read more

Bar code scanner

Just scan the bar code on the nest report and the correct file is loaded into the controller automatically. Reduces human error and automates the process.

Read more

Camfil Fume Extraction & Filtration Unit

Fume Extraction is essential for workplace health and safety, as well as the comfort of staff. The reverse pulse cleaning system ensures maximum performance.

Read more

Dross conveyors

Conveyors remove fallen parts and dross from under the cutting area. Eliminates clean-out.

Read more

ProfileShop V4 Controller

ProfileShop 4 is a full 3D capable controller interface that provides a real-time display and simulation of all machining processes. All jobs are managed by on-screen controls for setting origins, changing tools, starting, stopping and recovering jobs.

Read more

Refrigerated Air Dryer

Any moisture in the air supply will erode the plasma consumables very quickly. It is a requirement of the plasma system manufacturers to supply clean dry air.

Read more
