Dross & Part Conveyors.

Remove dross and fallen parts from under cutting deck

No more cleaning out under the cutting deck with these optional conveyors.

More Information

.

Construction
Metal hinge-plate conveyor belt
Guidance system
Each plate runs on metal rollers in a track
Drive
Individual 3 phase motor per conveyor
Reducer
Individual worm drive reducers per conveyor
Speed Control
Variable Frequency Inverter
Output

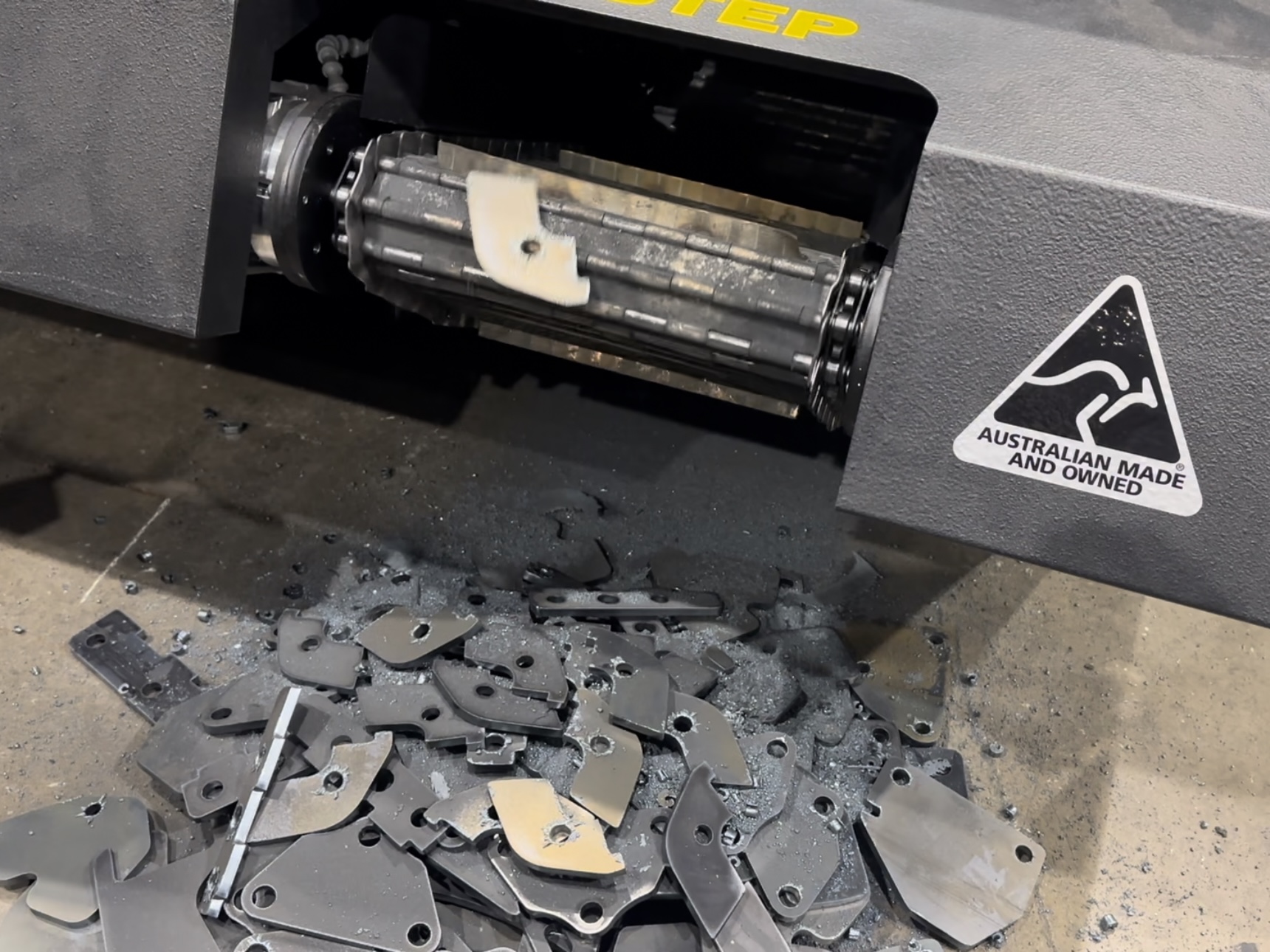

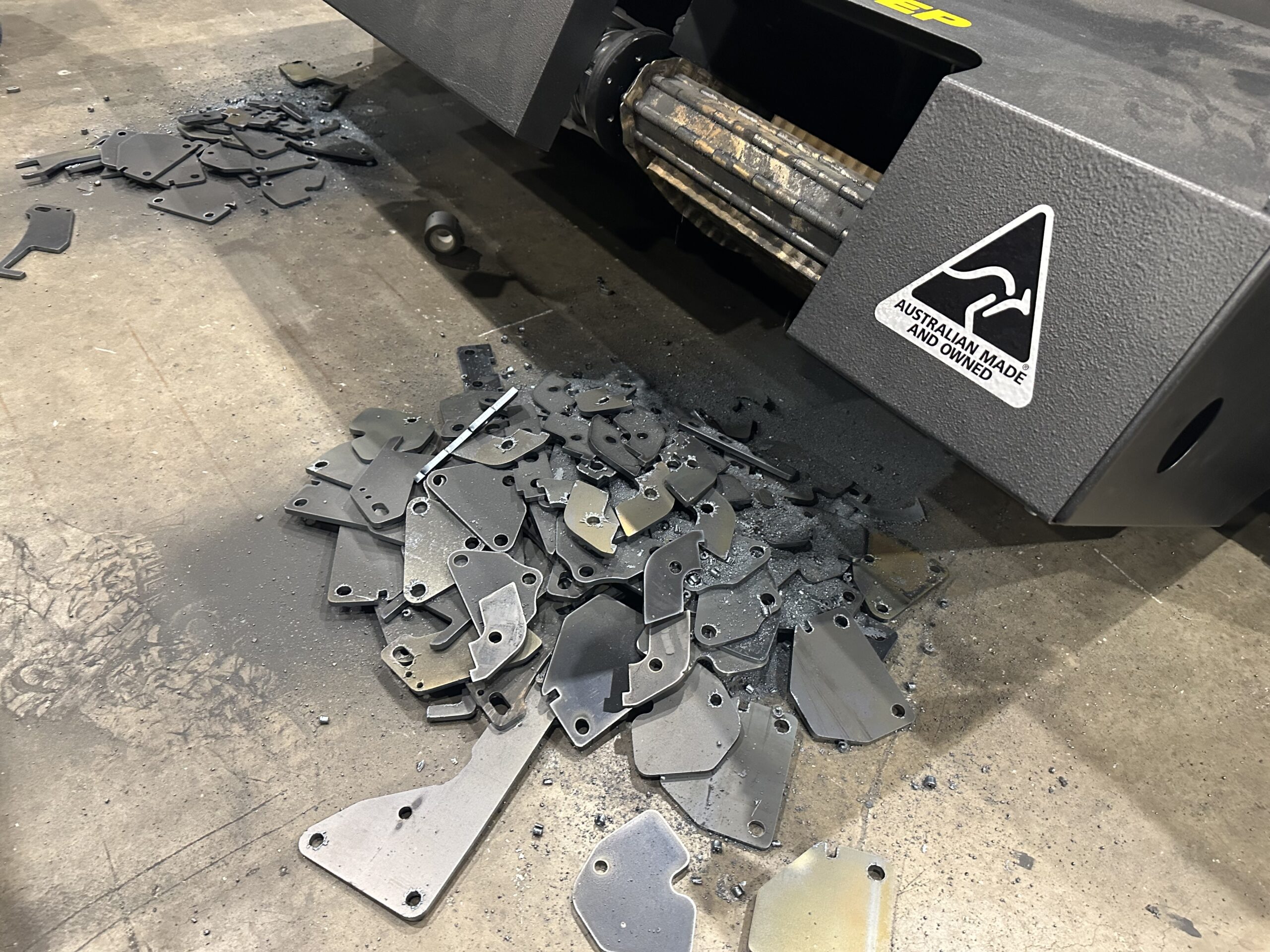

Drops dross and small parts into bin at end of machine
Protection
Overload/Jamming protection with emergency stop interlock

Watch a video showing the conveyors in action

The advantages of conveyors on a plasma cutting table…

Plasma cutting tables have traditionally been messy and difficult to clean out under the deck. Even more difficult is the task of retrieving small parts that fall through the cutting deck.

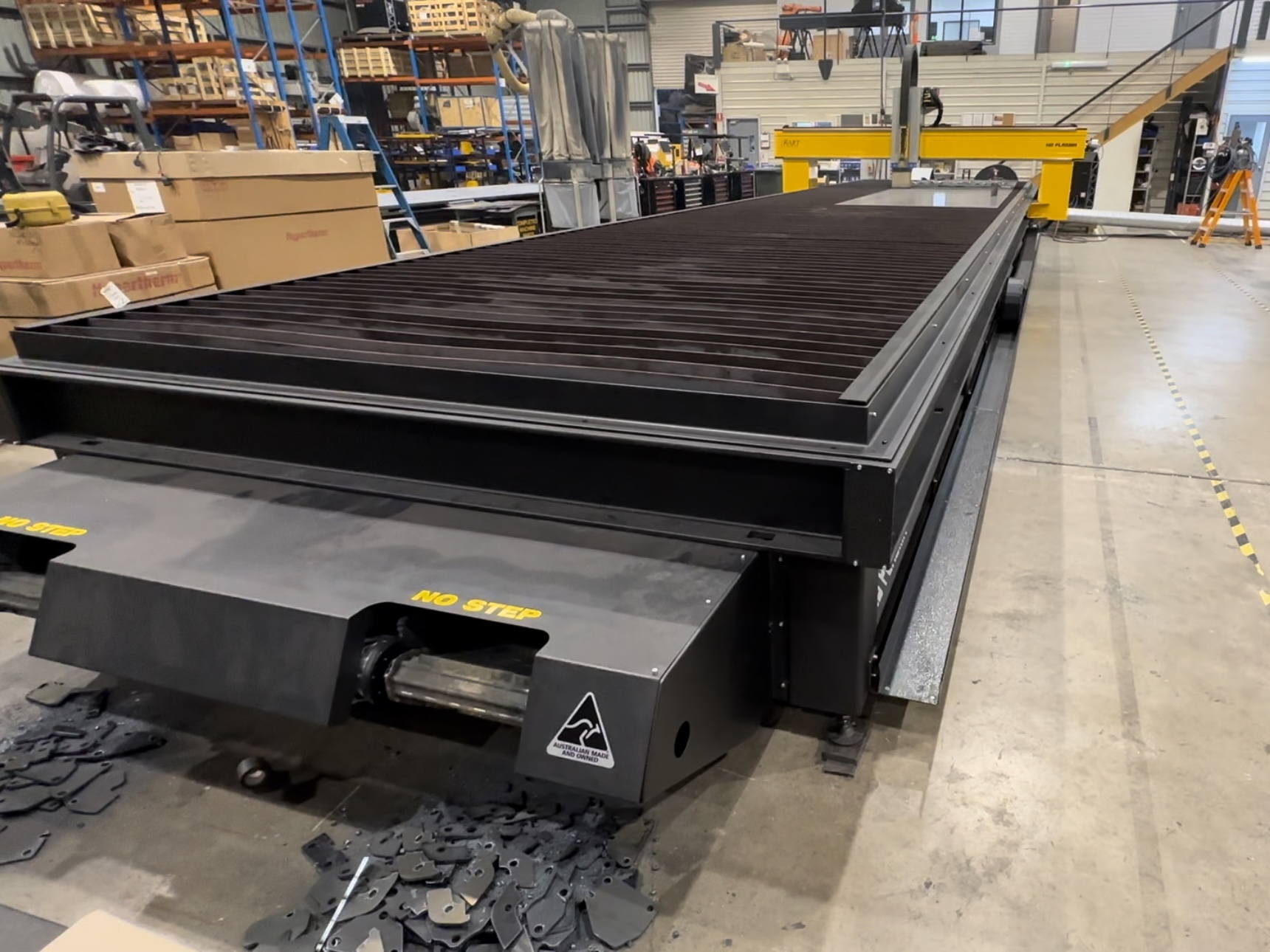

ART dry fume extraction beds now have the option of conveyors that work in conjunction with the active fume extraction system which removes dust and smoke efficiently, and the conveyors deliver dross and small fallen parts into a bin at the end of the machine.

Conveyors are applicable to the following ART machines…

XR Plasma Cutters
XRP Plasma/Drilling/Tapping Machines
HDP Heavy-Duty High-Definition Plasma Cutters
HDB High-Definition Bevel Plasma Cutters
